HDPE Pipes IS4984 PE80 and IS14333 PE100 Grade

HDPE Pipes IS4984 PE80 and IS14333 PE100 Grade
HDPE Pipes IS4984 PE80 and IS14333 PE100 Grade
Product Code : 02
Product Description

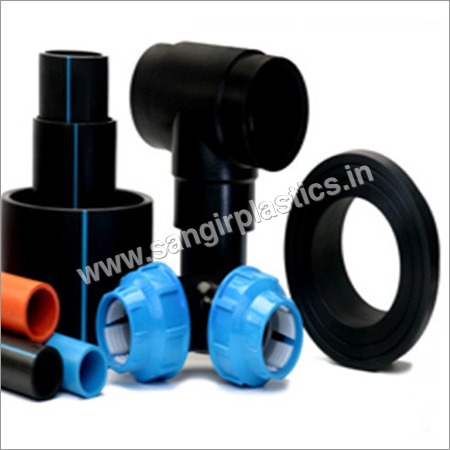

Sangir offers HDPE Pipes of the standard IS4984 PE 80 and IS 14333 PE 100 Grade. The pipes are available in OD 16mm to 1000mm. The pipes are known for their strength and quality.

 Features:

  • Underground piping suitability
  • Tough
  • Wear Resistant
  • Non-Toxic
  • High thermal resistance
  • Homogeneous weld
  • Chemical resistant
  • Prefabricated
  • Smooth inner walls
  • Poor heat conductivity
  • Light weight
  • Weather resistant
  • Highly suitable for welding
  • Suitable for waste water transportation
  • Does not condense in cooling for small periods
  • Installation is easy
  • Nature friendly

Applications:

  • Municipal
  • Industrial
  • Marine / Dredging
  • Agriculture
  • Electrical
  • Recreation
  • Infrastructure
  • Geo Thermal Heating
  • Aquaculture
  • Culverts
  • Ventilation
  • Float docks
  • Residential
  • Sanitation

Standard Sizing:

DR SDR41 SDR26 SDR17.6 SDR13.6 SDR11 SDR9 SDR7.4
  PN2.5 PN4 PN6 PN8 PN10 PN12.5 PN16
Size emin emax emin emax emin emax emin emax emin emax emin emax emin emax
16 0 0 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 2.3 2.8 2.8 3.3
25 0 0 0 0 0 0 0 0 2.3 2.8 2.8 3.3 3.5 4.1
32 0 0 0 0 0 0 2.4 2.9 3 3.5 3.6 4.2 4.5 5.2
40 0 0 0 0 2.3 2.8 3 3.5 3.7 4.3 4.5 5.2 5.6 6.4
50 0 0 2.3 2.8 2.9 3.4 3.8 4.4 4.6 5.3 5.6 6.4 6.9 7.8
63 0 0 2.5 3 3.6 4.2 4.7 5.4 5.8 6.6 7 7.9 8.7 9.8
75 0 0 2.9 3.4 4.3 5 5.6 6.4 6.9 7.8 8.4 9.5 10.4 11.7
90 2.3 2.8 3.5 4.1 5.1 5.9 6.7 7.6 8.2 9.3 10 11.2 12.5 14
110 2.7 3.2 4.3 5 6.3 7.2 8.2 9.3 10 11.2 12.3 13.8 15.2 17
125 3.1 3.7 4.9 5.6 7.1 8.1 9.3 10.5 11.4 12.8 13.9 15.5 17.3 19.3
140 3.5 4.1 5.4 6.2 8 9 10.4 11.7 12.8 14.3 15.6 17.4 19.4 21.6
160 4 4.6 6.2 7.1 9.1 10.3 11.9 13.3 14.6 16.3 17.8 19.8 22.1 24.6
180 4.4 5.1 7 7.9 10.2 11.5 13.4 15 16.4 18.3 20 22.2 24.9 27.6
200 4.9 5.6 7.7 8.7 11.4 12.8 14.9 16.6 18.2 20.3 22.3 24.8 27.6 30.6
225 5.5 6.3 8.7 9.8 12.8 14.3 16.7 18.6 20.5 22.8 25 27.7 31.1 34.5
250 6.1 7 9.7 10.9 14.2 15.9 18.6 20.7 22.8 25.3 27.8 30.8 34.5 38.2
280 6.9 7.8 10.8 12.1 15.9 17.7 20.8 23.1 25.5 28.3 31.2 34.6 38.7 42.8
315 7.7 8.7 12.2 13.7 17.9 19.9 23.4 26 28.7 31.8 35 38.7 43.5 48.1
355 8.7 9.8 13.7 15.3 20.1 22.4 26.3 29.2 32.3 35.8 39.5 43.7 49 54.1
400 9.8 11.5 15.4 18 22.7 26.4 29.7 34.4 36.4 42.1 44.5 51.4 55.2 63.7
450 11 12.9 17.4 20.3 25.5 29.6 33.4 38.7 41 47.4 50 57.7 0 0
500 12.2 14.3 19.3 22.4 28.4 32.9 37.1 42.9 45.5 52.6 55.6 64.1 0 0
560 13.7 16 21.6 25.1 31.7 36.7 41.5 48 51 58.9 0 0 0 0
630 15.4 18 24.3 28.2 35.7 41.3 46.7 54 57.3 66.1 0 0 0 0
710 17.4 20.3 27.4 31.8 40.2 46.5 52.6 60.7 0 0 0 0 0 0
800 19.6 22.8 30.8 35.7 45.3 52.3 0 0 0 0 0 0 0 0
900 22 25.5 32.7 40.2 51 58.9 0 0 0 0 0 0 0 0
1000 24.4 28.3 38.5 44.5 56.7 65.5 0 0 0 0 0 0 0 0

Other Information

  • Port of Dispatch: Nhava Sheva, Mumbai
  • Production Capacity: 15000 metric tons per year
  • Delivery Time: 2-4 weeks
  • Packaging Details: Loose, pallets or customized as per customer requirement.
