Product Description

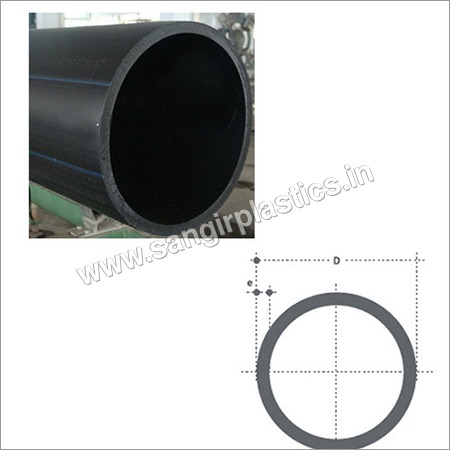

HDPE and MDPE Pipes of standard ISO 4427 PE 63, PE 80, PE 100 grades are available. The pipes are available from OD 20mm to 1200mm. These pipes are highly demanded for their quality and long life. Below are sizing details and features of the pipes.
Features: - Light-weight and easy installation
- Strong and durable
- Underground laying possible
- Condensation on cooling does not happen
- Can be welded easily
- Non conductive
- Heat resistance
Applications:
- Industrial
- Municipal
- Marine / Dredging
- Agriculture
- Recreation
- Electrical
- Infrastructur
Other Details:
| SDR | SDR41 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 |
| series | S 20 | S 12.5 | S 10 | S 8 | S 6.3 | S 5 | S 4 | S 3.2 |
| PE63 | PN2.5 | PN4 | PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 |
| PE80 | PN3.2 | PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 |
| PE100 | PN4 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 |
| Size | emin | emax | emin | emax | emin | emax | emin | emax | emin | emax | emin | emax | emin | emax | emin | emax |
| 20 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 2.3 | 2.3 | 2.7 | 3 | 3.4 |
| 25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 2.3 | 2.3 | 2.7 | 3 | 3.4 | 2.5 | 4 |
| 32 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 2.3 | 2.4 | 2.8 | 3 | 3.4 | 3.6 | 4.1 | 4.4 | 5 |
| 40 | 0 | 0 | 0 | 0 | 2 | 2.3 | 2.4 | 2.8 | 3 | 3.5 | 3.7 | 4.2 | 4.5 | 5.1 | 5.5 | 6.2 |
| 50 | 0 | 0 | 2 | 2.3 | 2.4 | 2.8 | 3 | 3.4 | 3.7 | 4.2 | 4.6 | 5.2 | 5.6 | 6.3 | 6.9 | 7.7 |
| 63 | 0 | 0 | 2.5 | 2.9 | 3 | 3.4 | 3.8 | 4.3 | 4.7 | 5.3 | 5.8 | 6.5 | 7.1 | 8 | 8.6 | 9.6 |
| 75 | 0 | 0 | 2.9 | 3.3 | 3.6 | 4.1 | 4.5 | 5.1 | 5.6 | 6.3 | 6.8 | 7.6 | 8.4 | 9.4 | 10.3 | 11.5 |
| 90 | 0 | 0 | 0 | 0 | 3.5 | 4 | 5.4 | 6.1 | 6.7 | 7.5 | 8.2 | 9.2 | 10.1 | 11.3 | 12.3 | 13.7 |
| 110 | 0 | 0 | 4.2 | 4.8 | 5.3 | 6 | 6.6 | 7.4 | 8.1 | 9.1 | 10 | 11.1 | 12.3 | 13.7 | 15.1 | 16.8 |
| 125 | 0 | 0 | 4.8 | 5.4 | 6 | 6.7 | 7.4 | 8.3 | 9.2 | 10.3 | 11.4 | 12.7 | 14 | 15.6 | 17.1 | 19 |
| 140 | 0 | 0 | 5.4 | 6.1 | 6.7 | 7.5 | 8.3 | 9.3 | 10.3 | 11.5 | 12.7 | 14.1 | 15.7 | 17.4 | 19.2 | 21.3 |
| 160 | 0 | 0 | 6.2 | 7 | 7.7 | 8.6 | 9.5 | 10.6 | 11.8 | 13.1 | 14.6 | 16.2 | 17.9 | 19.8 | 21.9 | 24.2 |
| 180 | 0 | 0 | 6.9 | 7.2 | 8.6 | 9.6 | 10.7 | 11.9 | 13.3 | 14.8 | 16.4 | 18.2 | 20.1 | 22.3 | 24.6 | 27.2 |
| 200 | 0 | 0 | 7.7 | 8.6 | 9.6 | 10.7 | 11.9 | 13.2 | 14.7 | 16.3 | 18.2 | 20.2 | 22.4 | 24.8 | 27.4 | 30.3 |
| 225 | 0 | 0 | 8.6 | 9.6 | 10.8 | 12 | 13.4 | 14.9 | 16.6 | 18.4 | 20.5 | 22.7 | 25.2 | 27.9 | 30.8 | 34 |
| 250 | 0 | 0 | 9.6 | 10.7 | 11.9 | 13.2 | 14.8 | 16.4 | 18.4 | 20.4 | 22.7 | 25.1 | 27.9 | 30.8 | 34.2 | 37.8 |
| 280 | 0 | 0 | 10.7 | 11.9 | 13.4 | 14.9 | 16.6 | 18.4 | 20.6 | 22.8 | 25.4 | 28.1 | 31.3 | 34.6 | 38.3 | 42.3 |
| 315 | 7.7 | 8.6 | 12.1 | 13.5 | 15 | 16.6 | 18.7 | 20.7 | 23.2 | 25.7 | 28.6 | 31.6 | 35.2 | 38.9 | 43.1 | 47.6 |
| 355 | 8.7 | 9.7 | 13.6 | 15.1 | 16.9 | 18.7 | 21.1 | 23.4 | 26.1 | 28.9 | 32.2 | 35.6 | 39.7 | 43.8 | 48.5 | 53.5 |
| 400 | 9.8 | 10.9 | 15.3 | 17 | 19.1 | 21.2 | 23.7 | 26.2 | 29.4 | 32.5 | 36.3 | 40.1 | 44.7 | 49.3 | 54.7 | 60.3 |
| 450 | 11 | 12.2 | 17.2 | 19.1 | 21.5 | 23.8 | 26.7 | 29.5 | 33.1 | 36.6 | 40.9 | 45.1 | 50.3 | 55.5 | 61.5 | 67.8 |
| 500 | 12.3 | 13.7 | 19.1 | 21.2 | 23.9 | 26.4 | 29.7 | 32.8 | 36.8 | 40.6 | 45.4 | 50.1 | 55.8 | 61.5 | 0 | 0 |
| 560 | 13.7 | 15.2 | 21.4 | 23.7 | 26.7 | 29.5 | 33.2 | 36.7 | 41.2 | 45.5 | 50.8 | 56 | 0 | 0 | 0 | 0 |
| 630 | 15.4 | 17.1 | 24.1 | 26.7 | 30 | 33.1 | 37.4 | 41.3 | 46.3 | 51.1 | 57.2 | 63.1 | 0 | 0 | 0 | 0 |
| 710 | 17.4 | 19.3 | 27.2 | 30.1 | 33.9 | 37.4 | 42.1 | 46.5 | 52.2 | 57.6 | 0 | 0 | 0 | 0 | 0 | 0 |
| 800 | 19.6 | 21.7 | 30.6 | 33.8 | 38.1 | 42.1 | 47.4 | 52.3 | 58.8 | 64.8 | 0 | 0 | 0 | 0 | 0 | 0 |
| 900 | 22 | 24.3 | 34.4 | 38.3 | 42.9 | 47.3 | 53.3 | 58.8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1000 | 24.5 | 27.1 | 38.2 | 42.2 | 47.7 | 52.6 | 59.3 | 65.4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1200 | 29.4 | 35.5 | 45.9 | 50.6 | 57.2 | 63.1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
